AlumaMark

AlumaMark - CO2 Laser Markable Aluminum

am-homepage2

AlumaMark is real aluminum that may be imaged or marked using a CO2 laser.  Unique among laserable substrates, AlumaMark allows one to create black, positive marks on silver, gold, bronze, brass or colored backgrounds.  Designed so that it may be marked using low power settings, AlumaMark is used to produce Nameplates, Name Badges, Plaque and Trophy Plates, Labels, Interior Signage and more.

If you have a CO2 laser, AlumaMark needs to be on your shelf and in your stable of product offerings! The proprietary technology allows you to create a high-quality, high-value product that differentiates your products from the competition. Add AlumaMark to your portfolio to respond quickly to customized and one-of-a-kind type applications that are difficult and expensive to produce using alternate methods and materials.

AlumaMark parts can be easily produced on your laser, when and where they are needed; or they may be purchased from a range of independent converters who are expert, equipped and ready for your call.

From Among Hundreds of AlumaMark Applications:

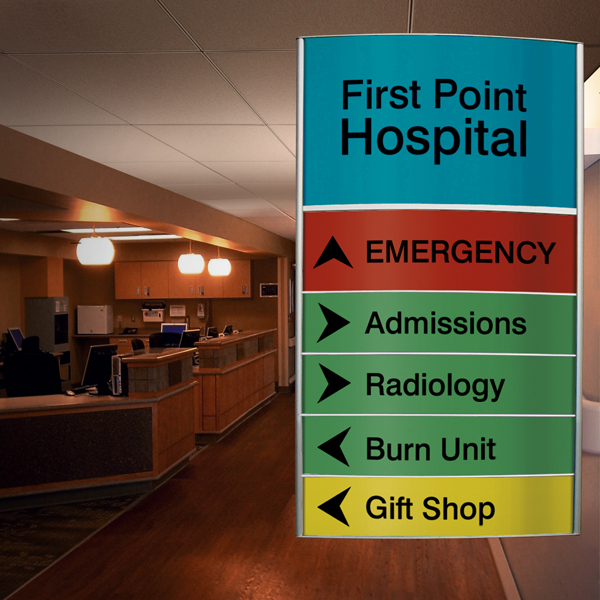

  • Application:
  • Wayfinding Signage
  • Material:
  • AlumaMark
  • Finish:
  • Satin Blue, Red Green and Yellow
  • Thickness:
  • .020"

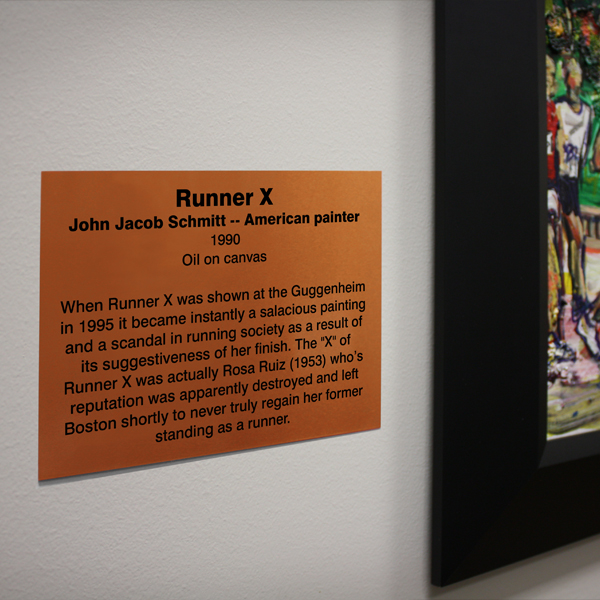

  • Application:
  • Museum & Display Signage
  • Material:
  • AlumaMark
  • Finish:
  • Satin Gold
  • Thickness:
  • .020"
  • Application:
  • Office & Hospital Signage
  • Material:
  • AlumaMark
  • Finish:
  • Satin Orange
  • Thickness:
  • .020"

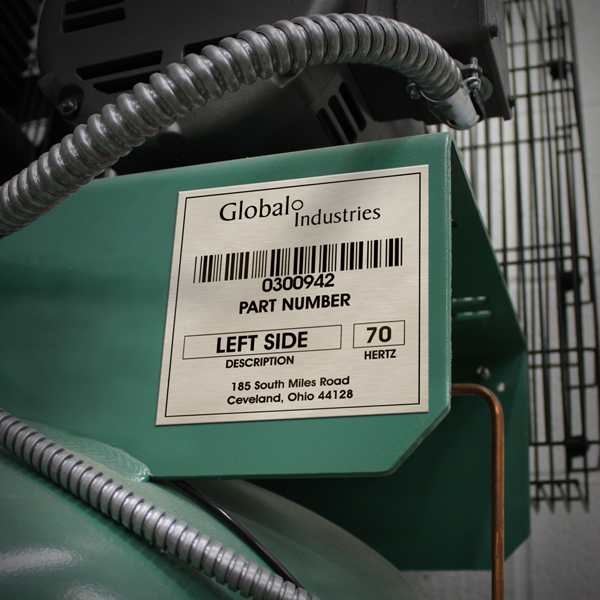

  • Application:
  • Barcodes & Asset Tags
  • Material:
  • AlumaMark
  • Finish:
  • Satin Silver
  • Thickness:
  • .020"

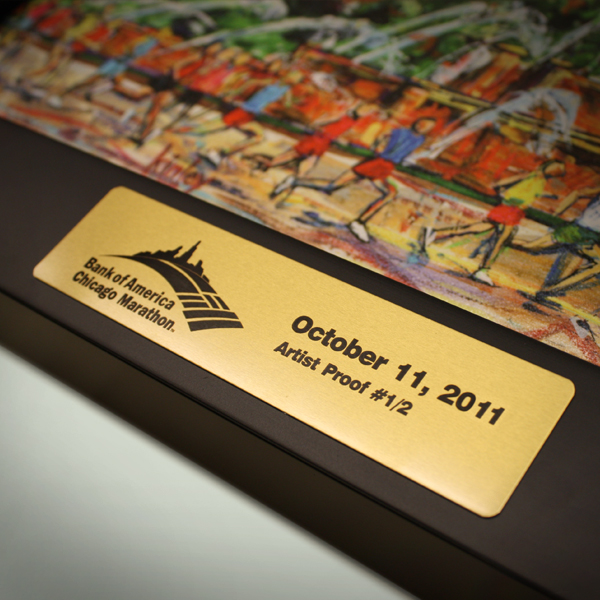

  • Application:
  • Plaque & Award
  • Material:
  • AlumaMark
  • Finish:
  • Satin Brass
  • Thickness:
  • .020"
  • Application:
  • Nameplates & Badges
  • Material:
  • AlumaMark
  • Finish:
  • Satin Gold
  • Thickness:
  • .020"
  • Application:
  • Plaque & Award
  • Material:
  • AlumaMark
  • Finish:
  • Satin Gold
  • Thickness:
  • .020"
  • Application:
  • Interior Architectural Signage
  • Material:
  • AlumaMark
  • Finish:
  • Satin Silver
  • Thickness:
  • .020"



AlumaMark is available in these fine colors:

Red
Orange
Yellow
Green
Blue
Satin Silver
Satin Gold
Satin Bronze
Satin Brass
Matte Silver
Mirrored Silver
Mirrored Gold


AlumaMark Product Offerings

AlumaMark Offerings:
Part Number Thickness (in.) Finish Sheet Size (in.) Adhesive Backing Sheets per Box
5260 0.005 Satin Silver 10" x 12" Yes 5
5261 0.005 Matte Silver 10" x 12" Yes 5
5220 0.005 Satin Gold 10" x 12" Yes 5
5204 0.020 Satin 5 Color Pack 10" x 12" No 5
5266 0.020 Satin Silver 12" x 20" No 5
5268 0.020 Satin Silver 12" x 20" Yes 5
5267 0.020 Matte Silver 12" x 20" No 5
5269 0.020 Matte Silver 12" x 20" Yes 5
5248 0.020 Satin Bronze 12" x 20" No 5
5249 0.020 Satin Bronze 12" x 20" Yes 5
5252 0.020 Satin Brass 12" x 20" No 5
5251 0.020 Satin Brass 12" x 20" Yes 5
5238 0.020 Satin Gold 12" x 20" No 5
5234 0.020 Satin Gold 12" x 20" Yes 5
5284 0.020 Mirrored Silver 12" x 20" No 5
5285 0.020 Mirrored Gold 12" x 20" No 5
5205 0.020 Satin Red 12" x 20" No 5
5206 0.020 Satin Yellow 12" x 20" No 5
5207 0.020 Satin Orange 12" x 20" No 5
5208 0.020 Satin Green 12" x 20" No 5
5209 0.020 Satin Blue 12" x 20" No 5
5270 0.020 Satin Silver 20" x 24" No 5
5271 0.020 Matte Silver 20" x 24" No 5
5231 0.020 Satin Gold 20" x 24" No 5
5253 0.020 Satin Brass 20" x 24" No 5
