For over 60 years, engineers have trusted Metalphoto® photosensitive anodized aluminium for extremely durable equipment and process identification items installed in demanding operating environments.

Because of its ability to withstand a range of challenging environmental conditions, Metalphoto is recommended for rating plates, inspection barcodes, maintenance schematics and other exposed identification on solar, wind and hydroelectric energy systems. Metalphoto meets an array of energy specifications including OSHA 1910.145, National Electric Code (NEC) Article 690, ANSI Z535.4 and ISO 3864.

Advantages:

• Exceptionally Durable: certified for 30 year installation with exposure to sunlight, heat, chemicals, salt spray and abrasion.
• Widely Specified: meets a wide array of commercial, government and military specifications.
• Always Readable: affords ultra-high image resolution and contrast; ideal for human or machine readable applications.

Applications:

• Application:

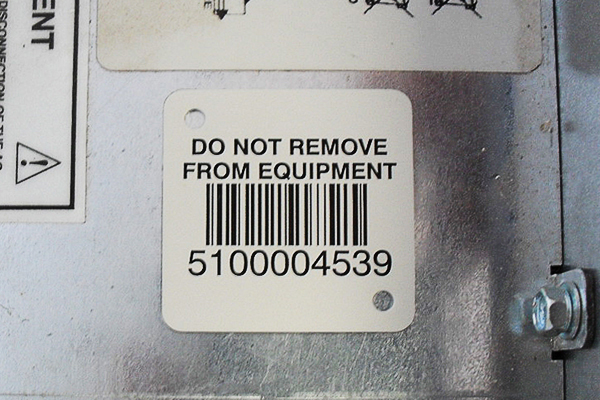

• Component Identification / Barcode Label
• Material:
• Metalphoto Photosensitive Anodized Aluminum
• Finishes:
• Matte, Satin, #4 (Brushed), Gloss
• Thicknesses:
• .003", .005", .008", .020", .032", .039", .063", .090", .125"

• Application:

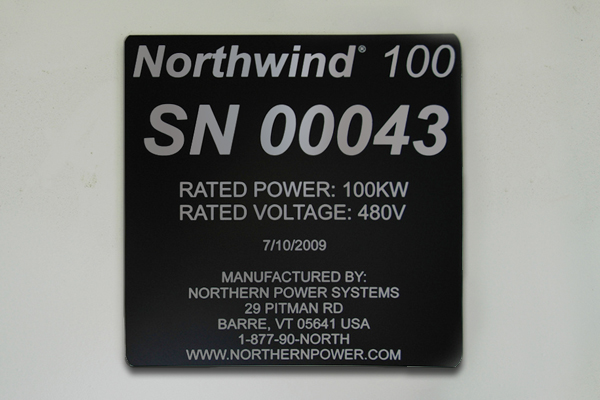

• Equipment Nameplates
• Material:
• Metalphoto Photosensitive Anodized Aluminum
• Finishes:
• Matte, Satin, #4 (Brushed), Gloss
• Thicknesses:
• .003", .005", .008", .020", .032", .039", .063", .090", .125"

• Application:

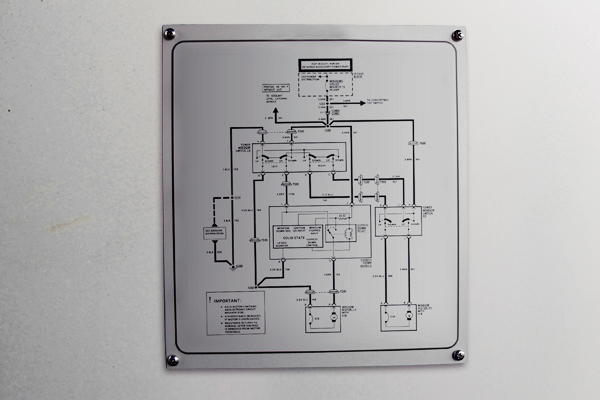

• Procedure / Maintenance Identification
• Material:
• Metalphoto Photosensitive Anodized Aluminum
• Finishes:
• Matte, Satin, #4 (Brushed), Gloss
• Thicknesses:
• .003", .005", .008", .020", .032", .039", .063", .090", .125"

• Application:

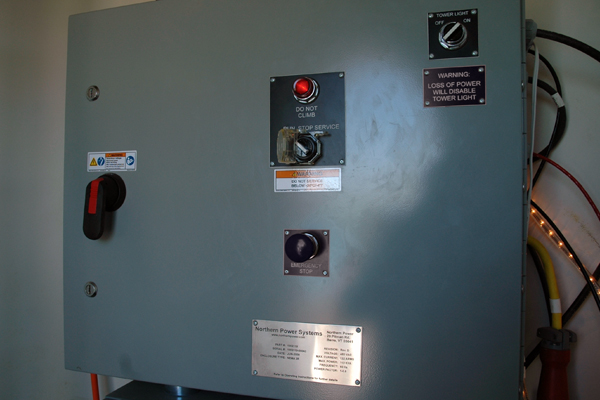

• Operator Control Panels
• Material:
• Metalphoto Photosensitive Anodized Aluminum
• Finishes:
• Matte, Satin, #4 (Brushed), Gloss
• Thicknesses:
• .003", .005", .008", .020", .032", .039", .063", .090", .125"

Industry-Specific Specifications:

• OSHA 1910.145
• National Electric Code (NEC) Article 690
• ANSI Z535.4
• ISO 3864

For a complete list of Metalphoto specifications, click here.  For durablity testing specifications, click here.

 Data Sheets/Resources:

• Metalphoto Data Sheet: Renewable Energy Assets

Metalphoto can be produced at your location where and when needed or purchased from worldwide network of approved suppliers. Contact Horizons Imaging Systems Group to get Metalphoto specified into your designs.
